Tube Summing Mixer

Demo

Register now and get the Tube Summing Mixer for 14 days without any commitment.

  • You register.
  • We send you the device to your studio by appointment.
  • You try it out for 14 days.
  • Then you decide if you want to keep it.
  • If not, you can return it without any ifs or buts.
(For demos outside of Germany we will either forward you to one of our international partners or send you a demo with a security deposit.)

Description

Tube Summing Mixer

Many grieve the sound of the era of analog mixer consoles but don’t want to waive the modern conveniences like total recall.

The Tube Summing Mixer gives you the opportunity to bring the sound of analog mixing with the benefits of a digital workflow to the comfort of your own studio.

The analog signal path, tubes and matching transformers, are responsible for processing the signals. The result is a typical analog sound; open & defined yet warm. The mix is not trapped in the box but opens up the whole room.

With 2 × 20 channels, there are enough inputs available to glue together the most demanding mixes. If 40 inputs aren’t enough for you, several Tube Summing Mixers can be cascaded to increase the input count. As you can use more than one Tube Summing Mixer together, nothing stands in the way of your surround mixes.

To ensure the exact reproducibility of a mix, the Tube Summing Mixer is equipped with a stepped output switch instead of a potentiometer. This allows a practical reduction at -3dB increments.

If you wish to insert mono signals into the mix, just insert the signal into the lower TRS jack. The mono signal is then automatically distributed to both channels simultaneously making it appear in the phantom center of the mix.

Photos

Videos

Review

Tegeler Tube Analog SUMMING MIXER w/ 40 Channels

Tegeler Audio Manufaktur TSM Tube Summing Mixer

How to connect a summing mixer? Audio interface - AD/DA converter - Cables - Mixer - Studio One

Analog vs Digital Summing Comparison (ft. Satori Monitoring Controller & Tegeler Tube Summing Mixer)

Sound Demo

Tube Summing Mixer Techno (no talking)

Tube Summing Mixer Hip Hop (no talking)

Tube Summing Mixer & Antelope Orion32 HD vs. Cubase ITB

Analoge Tube Summing Mixer on a Hip Hop track

Features

Features

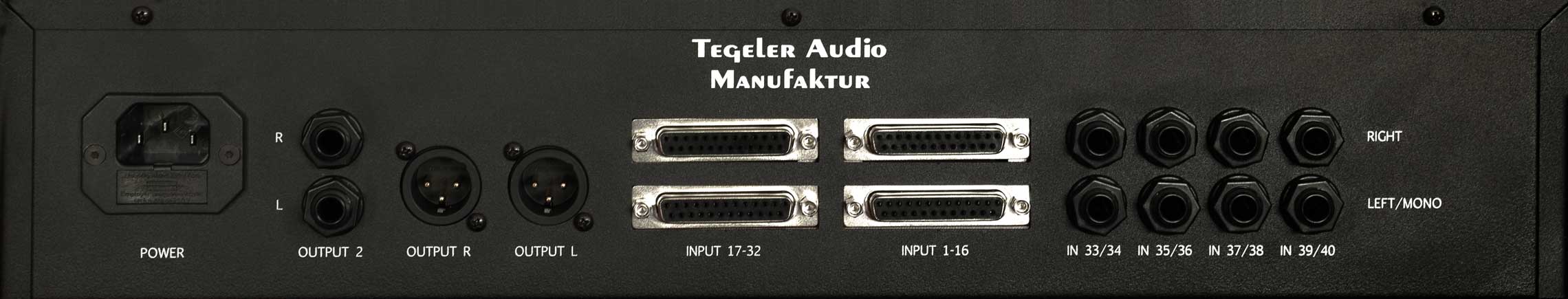

  • 2 × 16 balanced inputs via 4 sub D connectors (XLR or TRS via adapter cable, Tascam® layout)
  • 2 × 4 balanced TRS inputs (Neutrik®stereo jack)
  • Internal mix bus with up to +22 dBu
  • Active Tubes and Transformer output stage
  • Illuminated VU meters
  • Output Level switch in -3db increments

Specifications

  • Frequency Response: 20Hz - 40kHz
  • Maximum Input Level: +22 dBu
  • Input Impedance: ≥ 10kΩ
  • Output Impedance: < 600 Ω
  • Maximum Output Level: +24 dBu
  • Dynamic Range: ≥ 110 dB
  • Voltage: 230 V~/50Hz or 115V~/60Hz
  • Fuse: 500mA slow-blow
  • Maximum Power Consumption: < 25 W
  • Dimensions: 2 U, H:88.1 mm, W:483 mm, D:250 mm

News

Tube Summing Mixer review on Amazona.de
  • 31.01.2023
  • TSM
  • Review

If you are interested in reading about how the TSM can glue your tracks and bring out beautiful harmonics from the depths of your mix, look no further....

Artist Interview with Andrea Cichecki
  • 21.01.2022
  • TSM
  • EQP-1
  • Interview

Andrea Cichecki discusses her setup of a Tegeler TSM and an EQP-1...

Uses and "abuses" of our Tube Summing Mixer
  • 15.05.2020
  • TSM

Ivo Sotirov experiments with our Tube Summing Mixer (TSM) beyond analogue summing....

Home Summing Made Easy
  • 21.09.2018
  • Tube Summing Mixer
  • TSM
  • Review
  • Tutorial

Home Summing Made Easy...

The single-knob mix
  • 11.12.2017
  • TSM
  • Article

Why the TSM has just one single switch...

Amazona.de - Review Tube Summing Mixer TSM
  • 09.11.2015
  • Review
  • TSM

New review of the Crème by online magazine Amazona.de. Find the complete test here: https://www.amazona.de/test-tegeler-audio-manufaktur-tube-summing-mixer/ (German) https://www....

Tube Summing Mixer with new design
  • 02.09.2015
  • Story
  • TSM

The TSM is now available with their new design aesthetic. Beside the facelift we also revamped the inside to get an even better signal-to-noise ratio for example. On the rear ar...

Reviews

Amazona.de
Amazona.de
  • 2023-01
  • Axel Ritt
"The audio material loses corners and is significantly more compressed, especially in the midrange, than without analog summing.

Short, percussive sounds are only slightly decanted and experience a comparatively small change in sound. On the other hand, pads or already heavily compressed material experiences a significant increase in pressure, it becomes softer and more balanced in frequency.

It is also worth mentioning that the sound coloration does not affect the treble or bass range. Failures, such as a treble cut or lack of punch below 100 Hz, are therefore not to be feared."
Professional Audio Magazin
Professional Audio Magazin
  • 2007-06
  • Michael Nötges
"The individual signals appear contoured and lively and the sound image tastefully gains color and expressiveness.

The spatial information becomes more apparent, which results in a deeper listening impression. The sound image appears more vivid and acquires more three-dimensionality."
Sound&Recording
Sound&Recording
  • 2006-11
  • Andreas Hau
"The result already sounds much more like the sound image you are used to from analog productions than the purely digitally played out mix.

Your mix sounds as tight and crisp as before, just a bit 'deburred' and gently rounded at the corners"

FAQ

General
Please read our Endorsement Policy before contacting us.
Only the logo is new. Nothing else has changed.

For economic and environmental reasons, we refrained from throwing away everything with the old logo. Instead, we will replace all parts and materials piece by piece. Of course, when you buy a unit, you get the same quality no matter what logo is on the outside.

Downloads

No files available at the moment.

Order

Availability
in stock
Art. No. 2.848-00
Preis 1.799,00 €
Price incl. 19% VAT, plus shipping)
We ship worldwide.

Suitable Cable

Cable XLR female-TRS 2m

Availability
in production
Preis 14,99 €
Price incl. 19% VAT, plus shipping

Cable XLR male-TRS 2m

Availability
in stock
Preis 14,99 €
Price incl. 19% VAT, plus shipping

Cable XLR male-XLR female 2m

Availability
in stock
Preis 14,99 €
Price incl. 19% VAT, plus shipping

Suitable Multicore

Multicore DB25 Tascam-DB25 Tascam 0.5m

Availability
in stock
Preis 83,00 €
Price incl. 19% VAT, plus shipping

Multicore DB25 Tascam-DB25 Tascam 1m

Availability
in stock
Preis 89,00 €
Price incl. 19% VAT, plus shipping

Multicore DB25 Tascam-TRS 2m

Availability
in stock
Preis 89,00 €
Price incl. 19% VAT, plus shipping

Multicore DB25 Tascam-XLR female 0.5m

Availability
in stock
Preis 83,00 €
Price incl. 19% VAT, plus shipping

Multicore DB25 Tascam-XLR female 2m

Availability
in stock
Preis 89,00 €
Price incl. 19% VAT, plus shipping

Multicore DB25 Tascam-XLR male 2m

Availability
in stock
Preis 89,00 €
Price incl. 19% VAT, plus shipping

End your inner battle between digital and analog.
