Description
Classic Equalizer EQP-1
Passive Tube Equalizer
Did you ever hear such highs with a software-EQ?
I think not!
With this EQ, you tune in the highs and bass and it sounds just as good as you expected it and even better. You will be astonished and ask yourself how you have ever managed without the Classic Equalizer. Haven't you thought somehow after every Plug-in that you've tried that it could work better? You knew it and now you have found it! Get the Classic Equalizer and experience it for yourself.
Even though there are major advances within the digital technique during the past years, good sounding equalizers are still in the domain of analog devices.
And those who have heard the Classic Equalizer once know why: voices sound silky, instruments step out of the mix and are clearly locatable without one turning them up.
Deep frequency instruments like bass and bass drums get the necessary boost without sounding boomy. If you raise up the treble, it doesn't sound like lifted highs but everything simply sound fresher.
The Classic Equalizer EQP-1 was built after the model of classic vintage equalizers with passive components (condenser and inductor) in the EQ section which accounts for it´s special sound.
The EQP-1 consists of three parts: Bass Boost and Cut, Treble Boost with adjustable bandwidth and a High Frequency Cut.
What is the tube stage doing?
The Classic Equailzer is equipped with a tube stage and high quality input and output transformers.
Beside the open and airy sound of the equalizer the signal will get more density and additional presence by the tube and the transformers. The low end becomes more transparent and defined.
The highs will sound more rounded and pleasant to the ears.
This effect will already take place as soon as the device is in the signal path and even if the equalizer is not used.
Photos
Videos
Review
Is This The Outboard Tube EQ Unit Bargain Of The Century? Hands On With Tegeler's EQP-1
Tegeler Audio EQP-1 - From the Mix Gods
EQP-1 Review: Why guitars sound so MASSIVE in my mixes
Tegeler Audio EQP-1 Classic Equalizer Review & 2bus Demo
(Auf Deutsch) Analoger Pultec EQ von Tegeler Audio im Hörvergleich. Extrem schräger Nerdtalk mit Boxie Blue.
Tegeler EQP-1 Review by Andrea Cichecki
(中文) Pultec风格乘以2】Tegeler (泰格勒) Audio EQP-1 双通道被动电子管均衡音色演示评测
(En français) Tegeler Audio Manufaktur EQP-1 Review
The amazing TEGELER EQP 1 - Pultec style EQ
Sound Demo
Classic Equalizer EQP 1 Electronic Analog Rhythm (no talking)
Classic Equalizer EQP 1 acoustic guitar (no talking)
Classic Equalizer EQP 1 acoustic drums (no talking)
Classic Equalizer EQP 1 Novation Bass Station II (no talking)
Classic Equalizer EQP 1 vocals (no talking)
Features
Features
-
Low boost/attenuation (Low shelf):
20Hz, 30Hz, 60Hz, 100Hz -
High boost (Peak with variable bandwidth):
3kHz, 4kHz, 5kHz, 6kHz, 8kHz, 10kHz, 12kHz, 16kHz, 20kHz - High attenuation: (High shelf) 5kHz, 10kHz, 20kHz

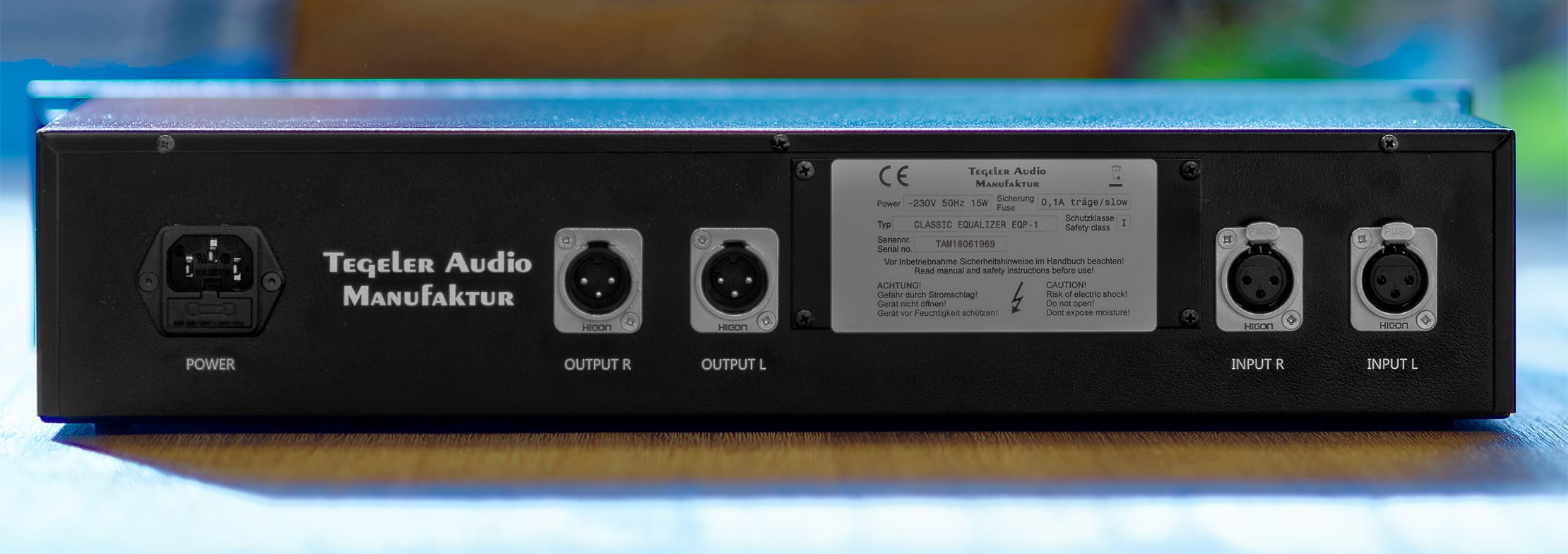

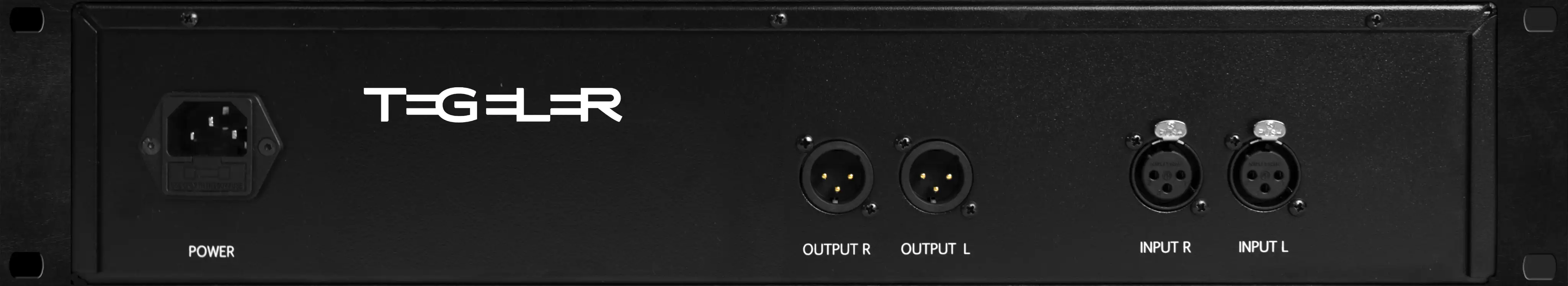

- Balanced input and output
- Input and output transformer
- Bypass switch
- internal power supply
- Height: 88,1mm (2HE), width:483mm, depth:220mm
Specifications
- Frequency Response: 20Hz - 22kHz
- Maximum Input Level: +20 dBu
- Input Impedance: ≥ 2.4kΩ
- Output Impedance: < 600 Ω
- Maximum Output Level: +22 dBu
- Dynamic Range: ≥ 95 dB
- Voltage: 230 V~/50Hz or 115V~/60Hz
- Fuse: 500mA träge
- Maximum Power Consumption: < 25 W (0,01A at 230 V)
- Dimensions: 2 U, H:88.1 mm, W:483 mm, D:250 mm
News
Artist Interview with Andrea Cichecki
- 21.01.2022
- TSM
- EQP-1
- Interview
Andrea Cichecki discusses her setup of a Tegeler TSM and an EQP-1...
What you always wanted to hear about EQP-1
- 19.09.2018
- EQP-1
- Demo
- Tutorial
What you always wanted to hear about EQP-1...
Production Expert: Mix Bus Processing using only Tegeler Audio Manufaktur Outboard Processors
- 25.06.2018
- Review
- EQP-1
- Schwerkraftmaschine
- Crème
Production Expert: Mix Bus Processing Using Only Tegeler Audio Manufaktur Studio Outboard Processors...
Reviews
Professional Audio Magazin 06/2006
- 2006-06
- Michael Nötges
...Like a tastefully applied soft-focus, the sound of the tube overlays the existing signal and rounds off the overall picture...
...Female voices appear more noble and gain presence even without the use of the individual filters...
...The result is absolutely convincing. The voice gets more depth, seems more transparent and spatial and appears much more powerful...
...Intuitive to use, with absolutely convincing sound results...
Tools4music 06/2007
- 2007-06
- Gerhard Schonk
...So be careful, the device can be addictive. Simply brilliant for female voices or bass and beautiful for saxophone and guitar...
...Hats off, a great part!...
...And in my equipment list will then be a Pultec replica from Tegeler Audio...
Xound 12/2007
- 2007-12
- Hagü Schmitz
"The sound is really convincing and even extreme settings never seem 'screwed'.
Whether vocals, acoustic guitar, complete tracks during mastering, etc. the Classic Tube Equalizer convinces in every discipline and always sounds warm and yet transparent."
Studio-Magazin 09/2006
- 2006-09
- Dieter Kahlen
...Very defined and clean, voluminous and yet without any tendency to smear the signal when boosting...
...All in all, the entire equalizer sounds rather "mild" and unobtrusive; even larger setting values do not cause brutal sonic changes or exaggerations...
User Reviews
FAQ
For economic and environmental reasons, we refrained from throwing away everything with the old logo. Instead, we will replace all parts and materials piece by piece. Of course, when you buy a unit, you get the same quality no matter what logo is on the outside.
Order
Preis 1.799,00 €
